Manage a fleet of LoRa gateways using Ubuntu Core with Landscape¶
Landscape is a Canonical service for fleet management of devices running Ubuntu.
It’s possible to manually install LoRa Basics Station one by one on multiple Ubuntu Core devices. This, however, is not scalable. A single disk image that can be flashed to multiple devices and personalized after the first boot would make deployment of large fleets easier. Ubuntu Core enables the creation of images, with a custom set of software packages, that can then be deployed to multiple machines, and personalized and managed using Landscape.
This guide shows you how to build an Ubuntu Core image containing a LoRa gateway, flash it onto a device(s), and configure it using Landscape. These instructions are written for, and tested with, a Raspberry Pi 5. However, with some modification, they should also work on other platforms.
Note
Before you continue, you should know how to build an Ubuntu Core image. You’ll also need a Landscape account on a Landscape server. You can use the Landscape SAAS included with your Ubuntu Pro account.
Create working directory¶
Create a working directory for the configuration of the image. This is where you will create the definition of the image and where the resulting image will be built and stored.
mkdir lora-ubuntu-core-image
cd lora-ubuntu-core-image
Build the gadget snap¶
The gadget snap defines and configures system properties that are specific to one or more devices. A custom version of this snap must be included as part of the Ubuntu Core image to set up the bootloader and other components. In this case, it is used to load default configurations onto the image such as Landscape and WiFi credentials.
To create the custom gadget snap, start by cloning the Raspberry Pi gadget snap repository into the working directory.
git clone https://github.com/canonical/pi-gadget --branch 24
The repository will be cloned into a new pi-gadget subdirectory.
Inside this subdirectory, edit the gadget.yaml file by appending this code:
defaults:
# Add default configurations for landscape-client snap using the snap-id
ffnH0sJpX3NFAclH777M8BdXIWpo93af:
landscape-url: https://landscape.canonical.com
account-name: "REPLACE-ME"
registration-key: ""
auto-register:
enabled: true
computer-title-pattern: ${mac}
wait-for-serial-as: false
system:
# Disable console-conf so that we do not have an interactive installer at first bootup
service:
console-conf:
disable: true
# Add this if you want to preconfigure wifi credentials
system:
network:
netplan:
network:
version: 2
wifis:
wlan0:
dhcp4: true
access-points:
"my-wifi-ssid":
password: "my-wifi-password"
You will also need to update the Landscape account name and the Landscape server URL to match your account and server. If you also want to preconfigure WiFi, update the WiFi SSID and password.
Finally, build the gadget snap by running:
cd pi-gadget
snapcraft -v
cd ..
Set up the model¶
Create a new model assertion by creating an empty file called model.json in the working directory and inserting the code below.
{
"type": "model",
"series": "16",
"model": "uc24-pi-arm64-lora",
"architecture": "arm64",
"authority-id": "REPLACE-ME",
"brand-id": "REPLACE-ME",
"timestamp": "2024-08-20T12:20:00+00:00",
"base": "core24",
"grade": "dangerous",
"snaps": [
{
"name": "pi",
"type": "gadget"
},
{
"name": "pi-kernel",
"type": "kernel",
"default-channel": "24/stable",
"id": "jeIuP6tfFrvAdic8DMWqHmoaoukAPNbJ"
},
{
"name": "core24",
"type": "base",
"default-channel": "latest/stable",
"id": "dwTAh7MZZ01zyriOZErqd1JynQLiOGvM"
},
{
"name": "core22",
"type": "base",
"default-channel": "latest/stable",
"id": "amcUKQILKXHHTlmSa7NMdnXSx02dNeeT"
},
{
"name": "snapd",
"type": "snapd",
"default-channel": "latest/stable",
"id": "PMrrV4ml8uWuEUDBT8dSGnKUYbevVhc4"
},
{
"name": "docker",
"type": "app",
"default-channel": "latest/stable",
"id": "sLCsFAO8PKM5Z0fAKNszUOX0YASjQfeZ"
},
{
"name": "lora-basicstation",
"type": "app",
"default-channel": "latest/edge",
"id": "Ym43FmNEiZgqaAciYg6EMqRC4dUjcYYb"
},
{
"name": "landscape-client",
"type": "app",
"default-channel": "latest/beta",
"id": "ffnH0sJpX3NFAclH777M8BdXIWpo93af"
}
]
}
This model assertion includes the landscape-client, lora-basicstation, and docker snaps.
Note
If you followed the prerequisite guide on how to build an Ubuntu Core image, you should already have generated and registered a snap signing key. The same key should be used here.
Update the authority-id and brand-id fields with your developer id.
Next, update the timestamp field to the current time, making sure it falls within the validity period of your snap signing key.
Finally, execute this command to sign the model:
snap sign -k my-model-key model.json > model.model
Build the image¶
Install the ubuntu-image application:
sudo snap install ubuntu-image --classic
Then, build a disk image from the signed model:
ubuntu-image snap --snap pi-gadget/pi_24-1_arm64.snap --validation=enforce model.model
The path to the custom gadget snap built earlier is set because it must be side-loaded into the image during the build process.
This should return:
[0] prepare_image
WARNING: the kernel for the specified UC20+ model does not carry assertion max formats information, assuming possibly incorrectly the kernel revision can use the same formats as snapd
WARNING: "pi" installed from local snaps disconnected from a store cannot be refreshed subsequently!
[1] load_gadget_yaml
[2] set_artifact_names
[3] populate_rootfs_contents
[4] generate_disk_info
[5] calculate_rootfs_size
[6] populate_bootfs_contents
[7] populate_prepare_partitions
[8] make_disk
[9] generate_snap_manifest
Build successful
If the build was successful you will find a file called pi.img in the working directory.
Note
During the build process you will see two warnings.
The warning about the kernel is explained in this forum discussion.
The warning about the
pisnap is caused by the side-loading of a custom locally built snap. The snap is not provided via the Snap Store and will, therefore, not get updates. To update custom gadget snaps like these, you will need a dedicated Snap Store.
Flash the image to a device¶
Flash the pi.img file to an SD card using Raspberry Pi
Locate the device on Landscape dashboard¶
Your Raspberry Pi should automatically register with Landscape after starting up.
In the gadget snap, landscape-client is configured to use the device mac address as name.

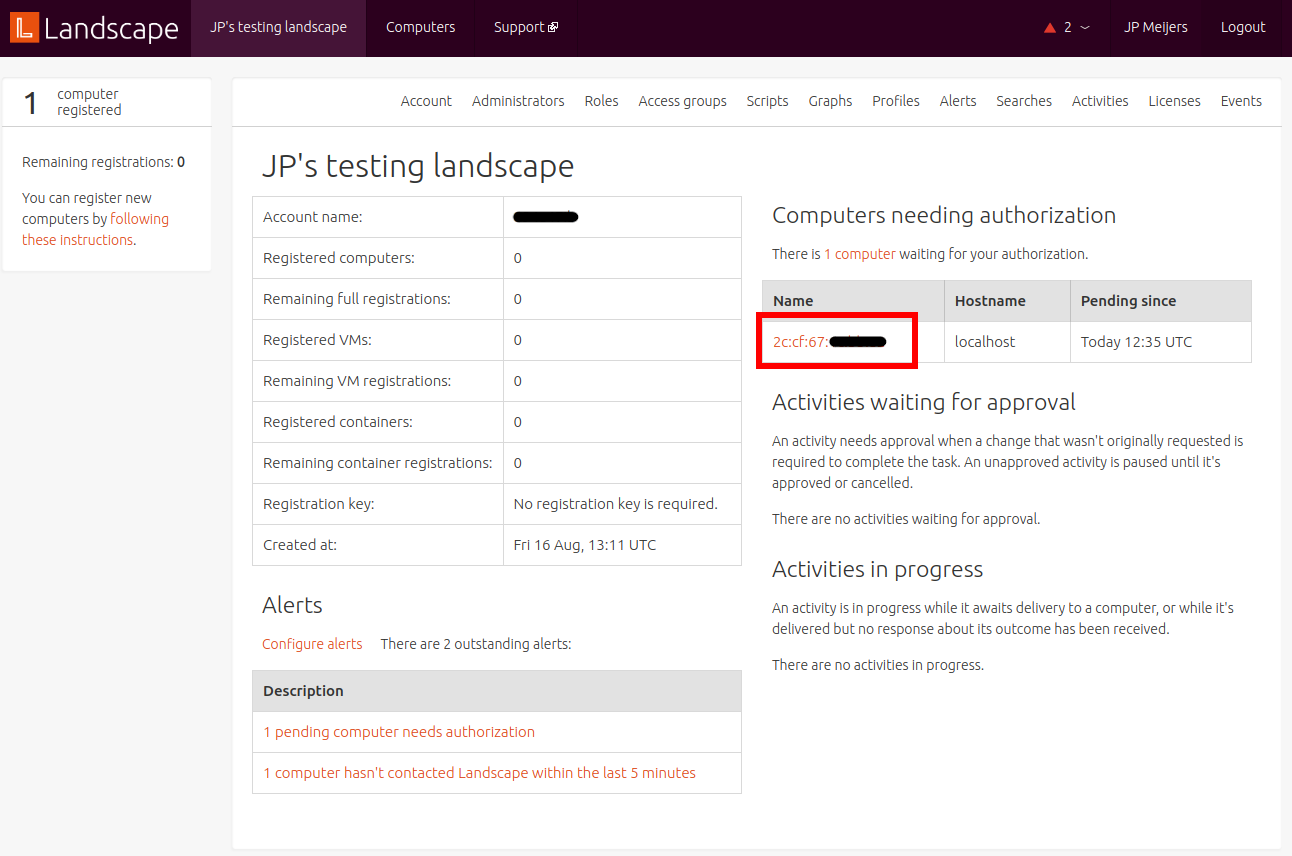

Therefore, your Raspberry Pi will appear on your Landscape dashboard as a pending device with its mac address as the name.

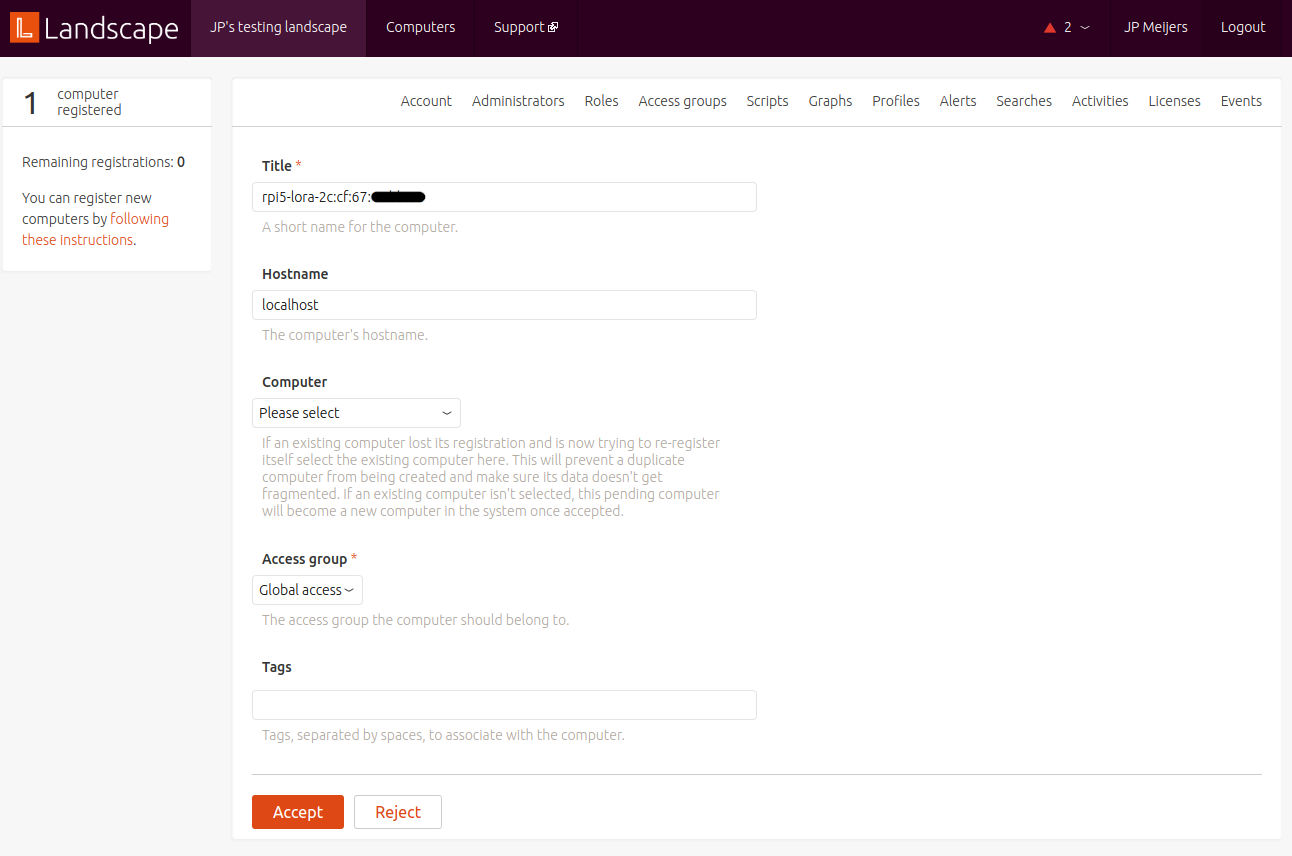

Click on this name to configure the device. You can also customize the device title here. Click accept to add the device to your Landscape instance.
After accepting you will see the info page for the device.

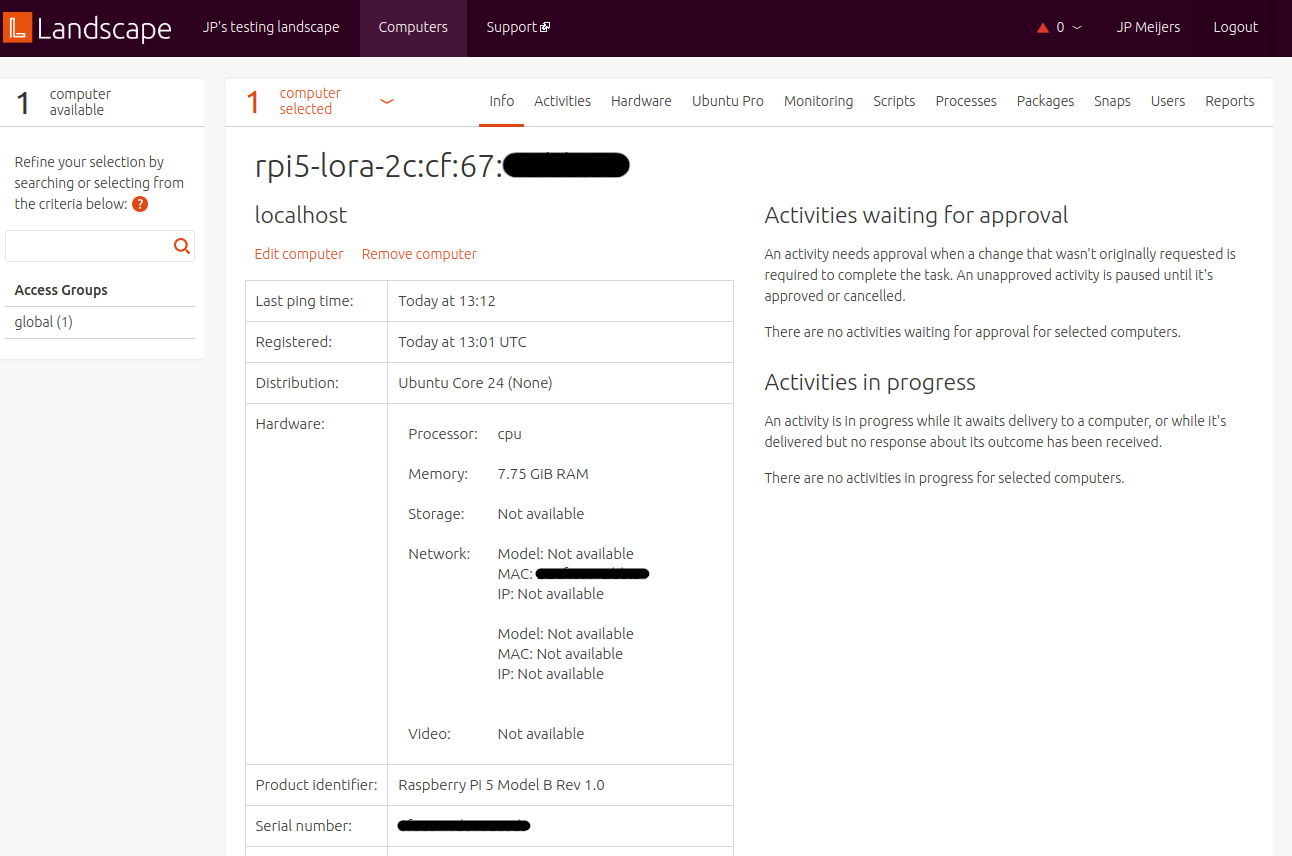

You’ll need to wait several minutes for the device to check in. Once this is done, the info page will show some basic parameters of the device such as total memory, model, and MAC addresses.
Devices are called computers on Landscape. To get back to this page in the future, go to the computers menu and select the device you are interested in from the list.
Verify installed snaps¶
To see which snaps are installed on a device, click on the Snaps tab and then click on Installed snaps.
You will see the list of installed snaps.
You can update or remove a Snap from here.
Verify that lora-basicstation is in the list.
To install more software on your device, click on Install snaps under the Snaps tab.
Configure the gateway¶
Configuration of an Ubuntu Core device with Landscape is done using scripts.
To configure your gateway, you’ll need to set snap options for lora-basicstation via a script.
Download this example script to continue.
On Landscape, after selecting your device from the list of computers, go to the scripts tab.
If presented with a choice, select Run a new script and click Next.

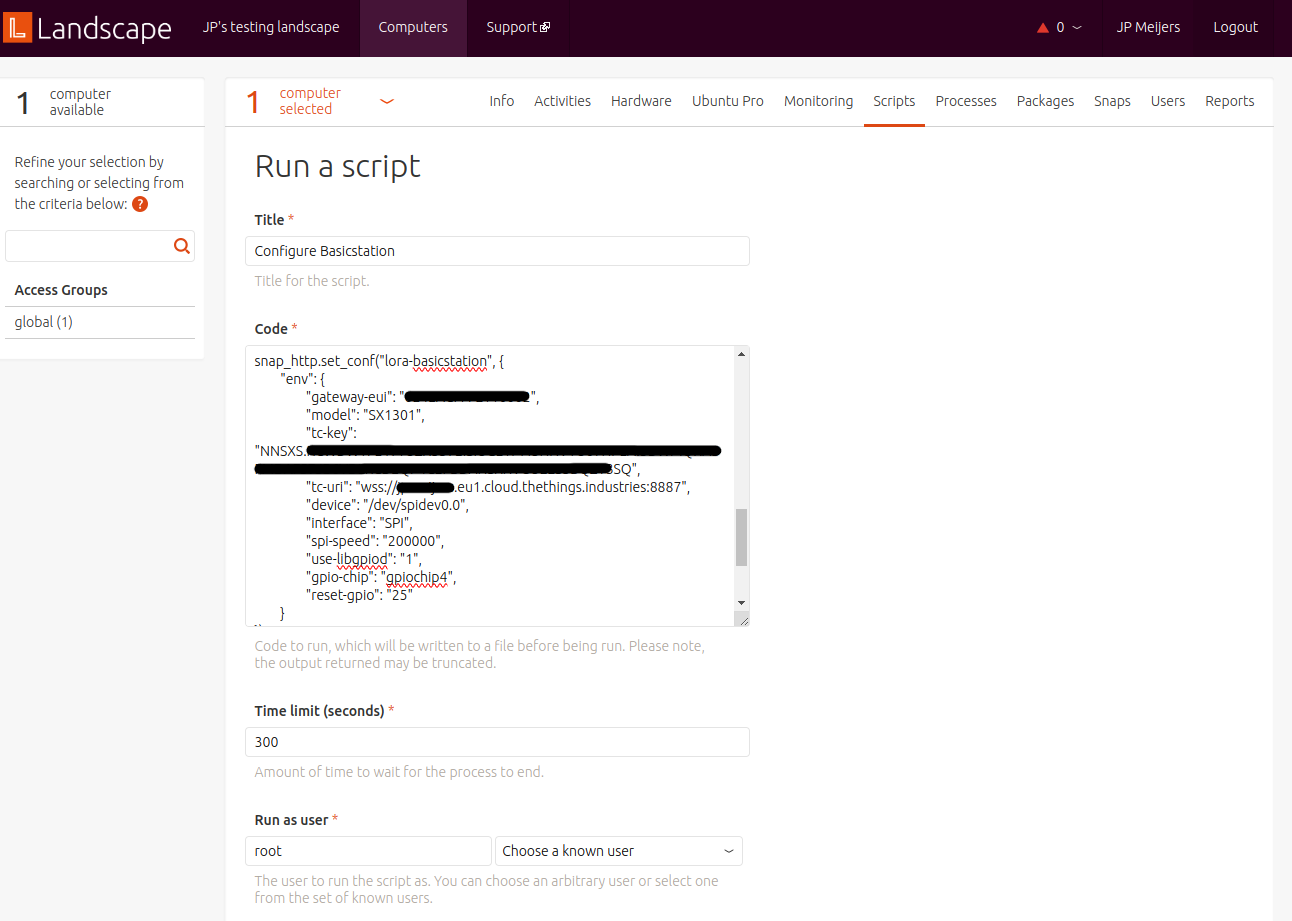

You will see a form to create a new script.
Give it a name, e.g., Configure
In the code block paste the contents of the example script above. You can modify the configuration in the script to suite your needs. This configuration roughly follows the process discussed in the configuration step of setting up a LoRa Basics station on Ubuntu Core.
For run as user use root.
Save the script and click Run.

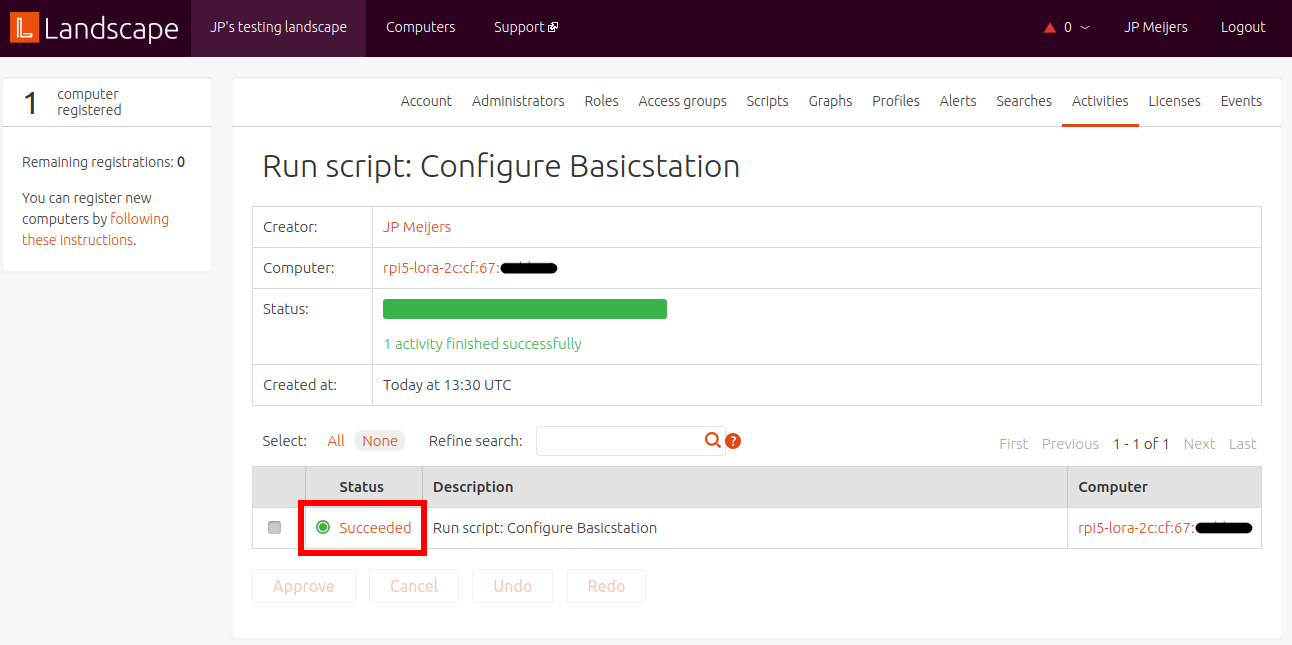

You will be redirected to the Activities tab where you will see the progress of the script. After a couple of minutes you should see a success.

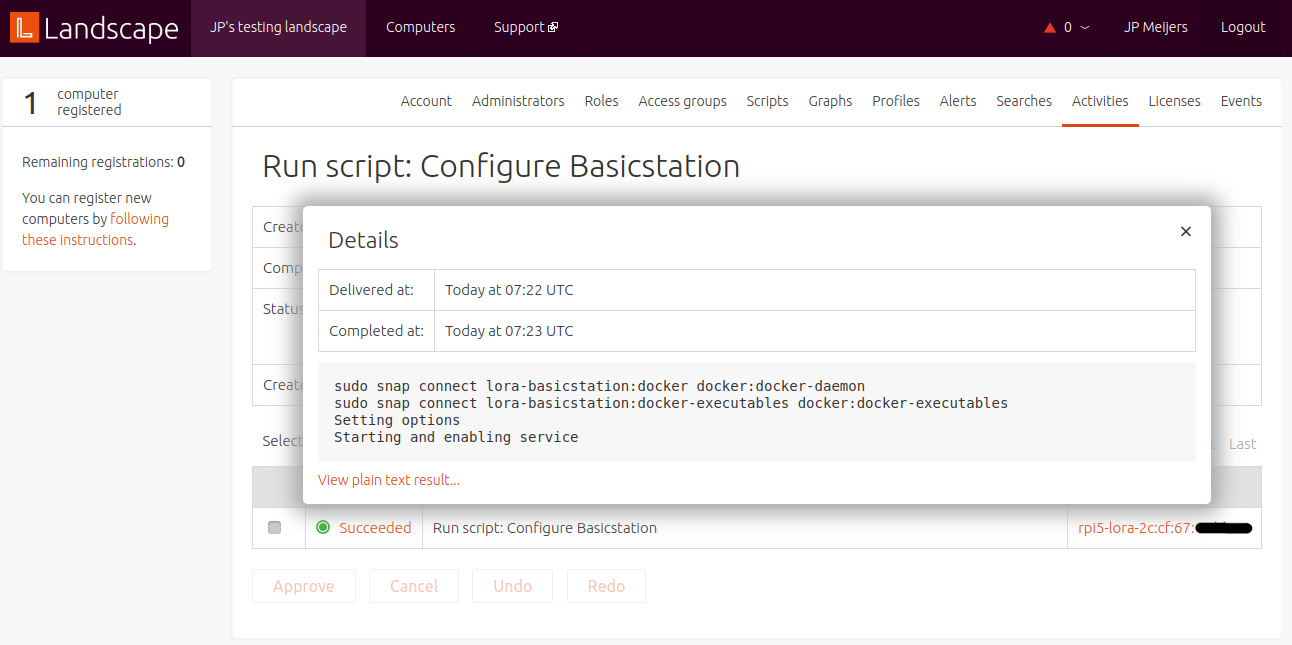

The text in the status column (Succeeded in this case) is clickable. Clicking on it will open a window to show the output of the script. If the script succeeded, the output will include stdout. If it failed, it will show stderr.

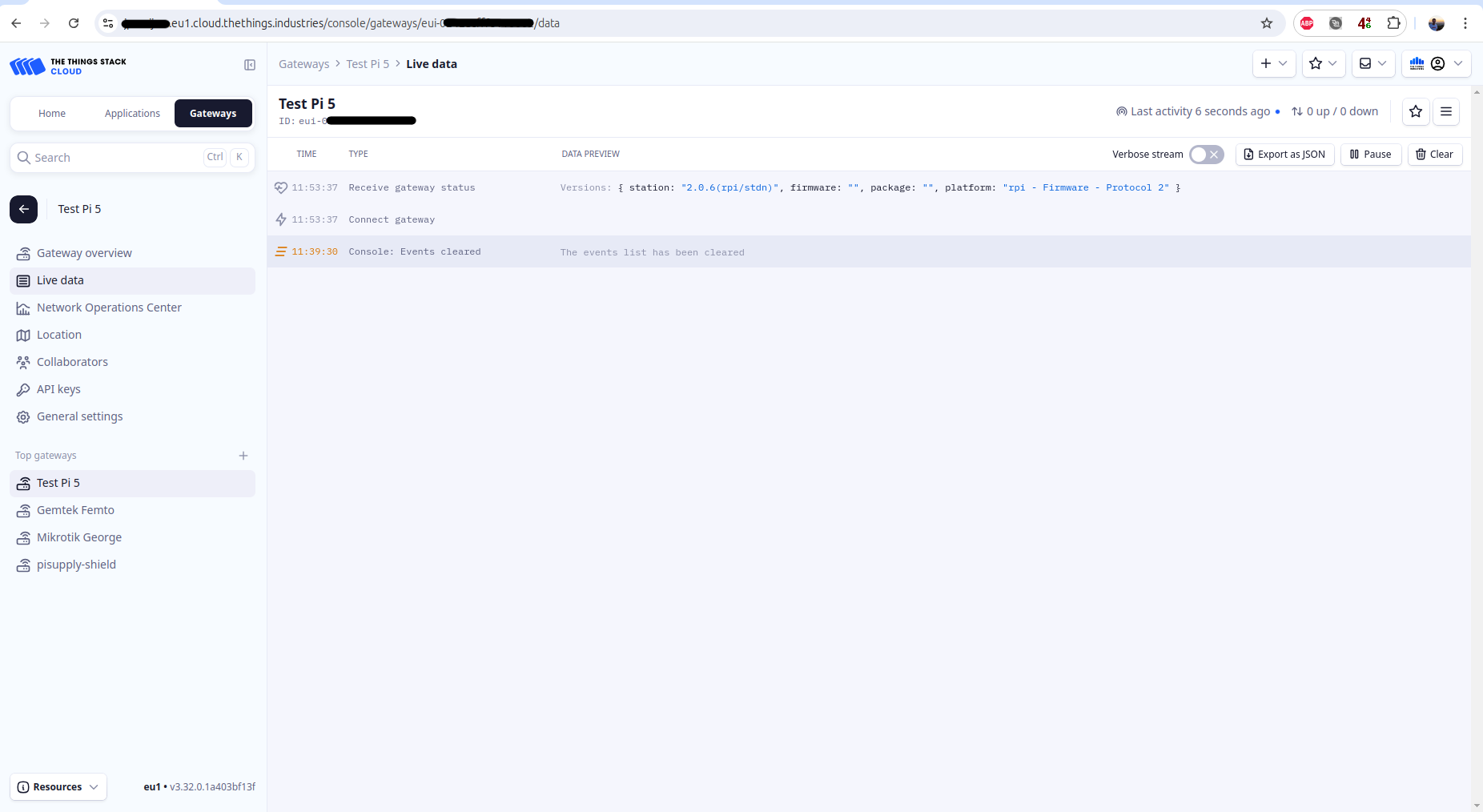

Log into your LoRa network server and confirm that the gateway is connected.
Debug¶
Debugging can be done by running scripts on the device. Checkout this page for example scripts for Ubuntu Core devices on Landscape.
Another debugging option is creating a user account on the device and logging into it over SSH or locally with a keyboard and mouse. The user management interface of Landscape does not currently work for Ubuntu Core. Follow this link to see example scripts to add users.
For instance, the add-sso-user.py script will add a user with an SSH key obtained from a Launchpad account.
